Install

Open Settings → Add-Ons and install imap from the catalog.

IMAP email management addon for piclaw.

Includes a web settings pane for managing accounts.

Features

• list folders
• search messages
• fetch envelopes or full message source
• move/copy messages
• add/remove IMAP flags
• create drafts via IMAP APPEND
• file composed messages into arbitrary folders
• create/delete folders
• implicit TLS (993) or STARTTLS (143)
• SQLite KV account settings + keychain-backed passwords
• web settings pane for add/edit/delete/default account management

What it is for

Use this addon when you want Pi to:

• inspect mailboxes over IMAP
• search and fetch messages
• file information into folders
• create drafts without SMTP
• manage multiple IMAP accounts from one settings pane

It is not an SMTP sender or a full mail client.

Storage model

SQLite KV store

Non-secret account settings are stored in the extension SQLite KV store:

• account name
• host
• port
• user
• from
• tls
• starttls
• allowInsecureTls
• default account

Keychain

Passwords are stored in keychain only:

• imap/<name>/password

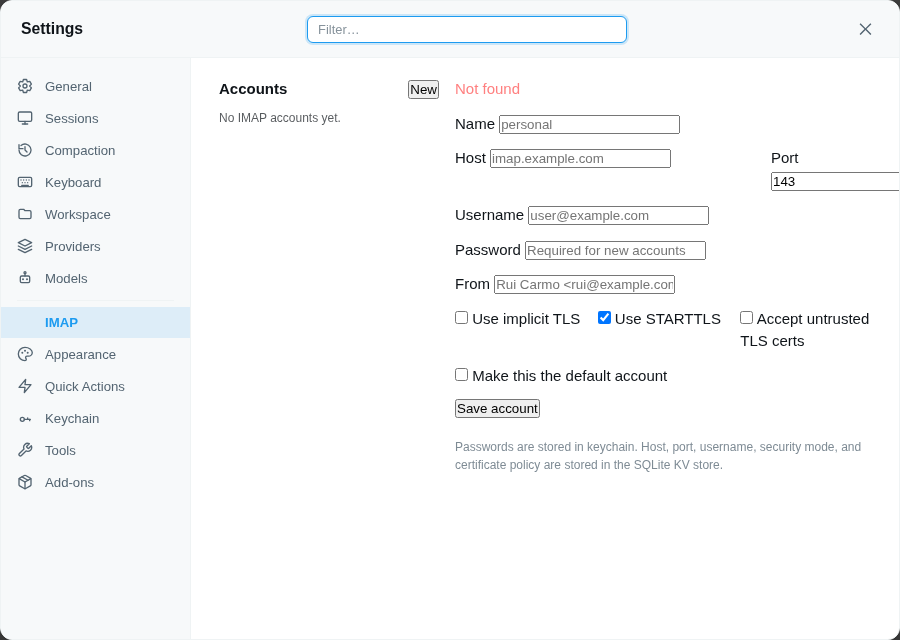

Settings pane

The settings pane supports:

• list accounts
• create account
• edit account
• delete account
• set default account
• toggle implicit TLS
• toggle STARTTLS
• toggle acceptance of untrusted/private/self-signed/expired certs

Per-account fields

• name
• host
• port
• user
• password
• from
• tls
• starttls
• allowInsecureTls

Security modes

Implicit TLS

Use:

• tls: true
• usually port 993

STARTTLS

Use:

• tls: false
• starttls: true
• usually port 143

Plain IMAP

Use:

• tls: false
• starttls: false

Only sensible on a trusted LAN.

Accept untrusted certificates

allowInsecureTls: true disables certificate verification for that account.

This covers:

• private CA certificates
• self-signed certificates
• expired certificates
• hostname mismatch
• broken chains

Use it only when necessary.

Account management through the tool

In addition to the settings pane, the imap tool supports:

• list_accounts
• get_account
• save_account
• delete_account
• set_default_account

Example: save account

{
  "action": "save_account",
  "account": "local",
  "host": "192.168.1.250",
  "port": 143,
  "user": "rcarmo",
  "pass": "...",
  "tls": "false",
  "starttls": "true",
  "allowInsecureTls": "true",
  "setDefault": "true"
}

Mailbox actions

The same tool also supports:

• list_folders
• search
• fetch
• move
• copy
• flag
• create_draft
• file_message
• create_folder
• delete_folder

Examples

List accounts

{
  "action": "list_accounts"
}

Search unread mail

{
  "action": "search",
  "account": "local",
  "folder": "INBOX",
  "seen": "false",
  "limit": 20
}

Fetch full source

{
  "action": "fetch",
  "account": "local",
  "folder": "INBOX",
  "uids": "12345",
  "withBody": "true"
}

Create draft

{
  "action": "create_draft",
  "account": "local",
  "draftTo": "someone@example.com",
  "draftSubject": "Test draft",
  "draftBody": "Hello from Pi"
}

Operational note for the local Synology-style server

In your current local setup:

• IMAPS on 993 was closed
• IMAP on 143 worked
• STARTTLS worked
• strict verification failed because the certificate was expired

So the working temporary config was:

{
  "host": "192.168.1.250",
  "port": 143,
  "user": "rcarmo",
  "tls": false,
  "starttls": true,
  "allowInsecureTls": true,
  "from": "rcarmo"
}

Once the certificate is renewed, allowInsecureTls should be set back to false.

Notes

• No SMTP support.
• This addon cannot send mail; it only manipulates mailboxes over IMAP.
• Drafts and filed messages are created with IMAP APPEND.
• Mutating actions support dryRun where appropriate.
• delete_folder requires confirm=true.
